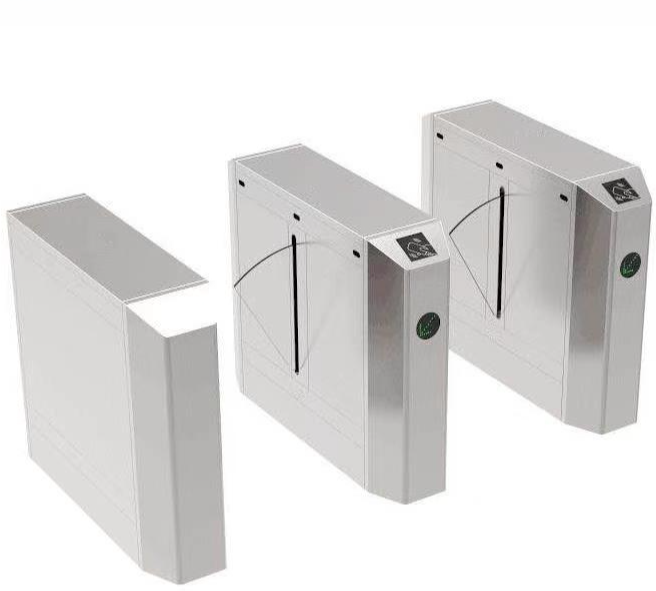

The AGZ-Z1116B series flap gate is a brand-new cost-effective pedestrian access control equipment launched by Auto Gatz for indoor and outdoor scenarios such as communities and office buildings. In order to meet the needs of different customers, the product is divided into AGZ-Z1116BN indoor model and AGZ-Z1116BW outdoor model. AGZ-Z1116BN adopts grating detection technology and is equipped with 40 pairs of grating IR electric eyes sensors; AGZ-Z1116BW uses photoelectric switch detection technology and is equipped with 6 pairs of photoelectric switches to ensure the safety of pedestrian in an all-round.
Key Features
The chassis body is made of 304 stainless steel, and the surface adopts fine brushed texture effect. The overall style is elegant and concise, with simple line style and unique appearance
The indoor model adopts grating detection technology and is equipped with 40 pairs of grating electric eyes; the outdoor model uses photoelectric switch detection technology and is equipped with 6 pairs of photoelectric switches. intensive detection, sensitive induction, and safe
The two-color-arrow status indicator and the passing indicator light allow pedestrian to clearly acknowledge the channel status. With in-time sound reminders to ensure the passing is safe
Driven by DC brushless motor, firm structure, strong torque, anti-friction and noise reduc tion, durable operation, adjustable switching speed from 0.5S to 1S, MCBF≥15 million cycles, operating noise≤65dB
It supports multiple access control authentication methods such as face recognition, identity comparison, IC cards, QR code recognition, etc., to meet the needs of various access control scenarios, and can be integrated with other systems for management and expansion.
Product Specifications
| Product model | AGZ-Z1110 | AGZ-Z1119 |
|---|---|
| Body and Side Frame | 304 Stainless Steel |
| Gate Panel Material | Acrylic |
| Color | Stainless steel original color |
| Dimensions (L*W*H) | 1,400*280*980mm |
| Lane Width | 500 - 550mm |
| Motor | DC brushless motor |
| Power Supply | AC 220V/110V±10%, 50/60HZ |
| Device Power | Total power: 100W / Motor power: 40W |
| Passing Speed | Normally closed: 30 persons/min/ Normally open: 40 persons/min |
| Open-closing Speed | 0.5s-1s adjustable |
| Detection Speed | Photoelectric Switch | Grating IR sensor |
| Number of Electric Eyes | 6 Pairs | 40 Pairs |
| Communication interface | Serial port and multi-channel I/O interface |
| Communication Protocol | RS485 and TCP/IP |
| Noise | <65dB |
| Working Temperature | -25°C to +70°C |
| Working Humidity | <90%, no condensation |
| Applicable Environment | Indoor and outdoor | Indoor |

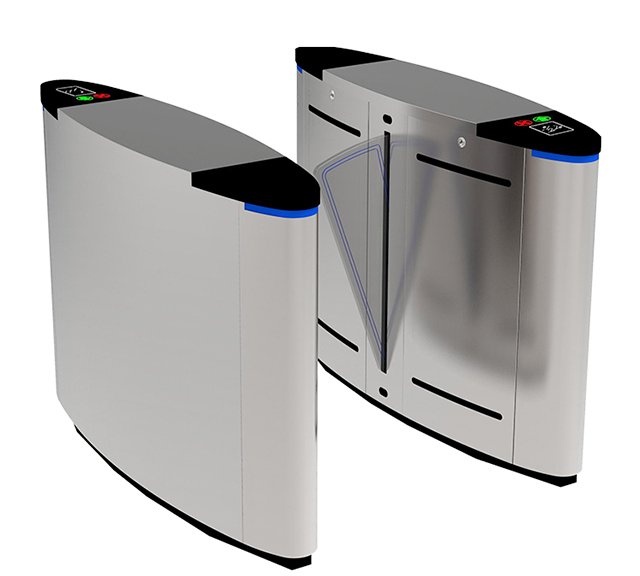

The AGZ-Z1119 intelligent flap barrier is made of SS304 and shaped by cold rolled plate processing. It characterized with beautiful design and great texture and easy to Install and maintain, Etc. Can Integrated with any third party access control
The AGZ-Z1110 intelligent flap barrier is made of SS304 and shaped by condoled plate processing. It characterized with beautiful design and great texture and easy to Install and maintain, Etc. Its Integrates multiple functions such as door access control, attendance
